Route Origin
The route server will mark all routes with certain BGP Communities to indicate their origin. You can use this information to determine where a certain route has been injected into the SwissIX switching platform. This gives you the option to filter routes learned from the route servers based on geographical location.
Currently we tag the following information:
- Switch: Indicates at which switch a prefix has been injected into the SwissIX platform. We tag the corresponding edge switch of the port.
- Example: edge01.zrh1
- Metro: The metropolitan region corresponding to the switch
- Example: Zurich
- Country: The country corresponding to the above (in M49 format)
- Example: Switzerland
- Continent: The continent corresponding to the above (in M49 format)
- Example: Europe
This means that every route you will learn from the route servers will have four (additional) BGP Communities (per community class, e.g. each Standard and Large respectively) attached which will indicate location information.

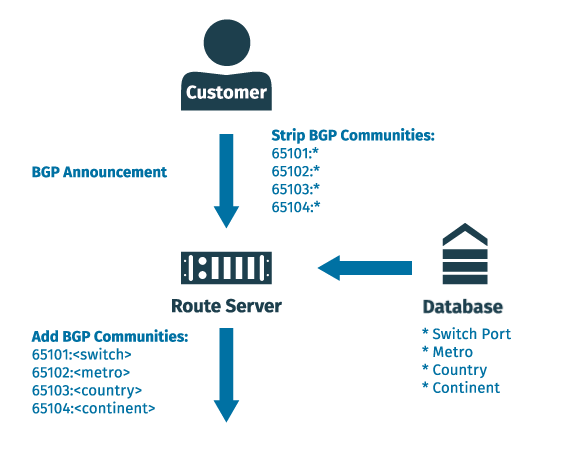

To avoid ambiguity about the semantics of a certain BGP Community, especially when being present multiple times, we strip all BGP Communities from the range that we use for route origin tagging on import. This is:
- Standard Communities
65101:*
65102:*
65103:*
65104:*
- Large Communities
42476:1911:*
42476:1912:*
42476:1913:*
42476:1914:*
Overview
Continent | Continent BGP Community | Country | Country BGP Community | Metro | Metro BGP Community | Switch | Switch BGP Community |
---|---|---|---|---|---|---|---|
Europe | 65104:150 42476:1914:150 | Switzerland 🇨🇠| 65103:756 42476:1913:756 | ZRH (Zurich) | 65102:33000 42476:1912:28 | edge01. zrh1 | 65101:33150 42476:1911:150 |
edge01. zrh2 | 65101:33151 42476:1911:151 | ||||||
edge01. zrh3 | 65101:33152 42476:1911:152 | ||||||
edge01. zrh4 | 65101:33153 42476:1911:153 | ||||||
edge01. zrh5 | 65101:33154 42476:1911:154 | ||||||
edge01. zrh6 | 65101:33155 42476:1911:155 | ||||||
edge01. zrh7 | 65101:33156 42476:1911:156 | ||||||
Unknown Continent | 65104:65535 42476:1914:65535 | Unknown Country | 65104:65535 42476:1913:65535 | Unknown Metro | 65102:65535 42476:1912:65535 | Unknown Switch | 65101:65535 42476:1911:65535 |
Example
A prefix has the following BGP Communities attached to it:
65104:2
42476:1914:150
65103:556
42476:1913:756
65102:33000
42476:1912:28
65101:33150
42476:1911:150
From these BGP Communities you can deduce that this particular prefix has been injected in Europe (65104:150
, 42476:1914:150
), Switzerland (65103:756, 42476:1913:756
) in metro region Zurich (65102:33000, 42476:1912:28
) at edge01.zrh1 (65101:33150, 42476:1911:150
).
